The Savièse transmitter
Switched off in December 2005
Transmitter data
| Location: | E 7° 21' 16.63" / N 46° 14' 34.90" |
| Frequency: | Transmitter is off (used to be 1485 kHz) |
| Wavelength: | Transmitter is off (used to be 202 m) |
| Power: | Transmitter is off (used to be 1 kW) |
| Call-sign: | Used to be "Option Musique" |
| Transmission type: | Used to be a medium wave AM broadcast station |
This transmitter has been switched off in December 2005
Main antenna
| Tower type: | Telecom tower (shared) |
| Antenna type: | Top fed sloper, isolated from ground |
| Feed point: | Top of tower, top of sloper |

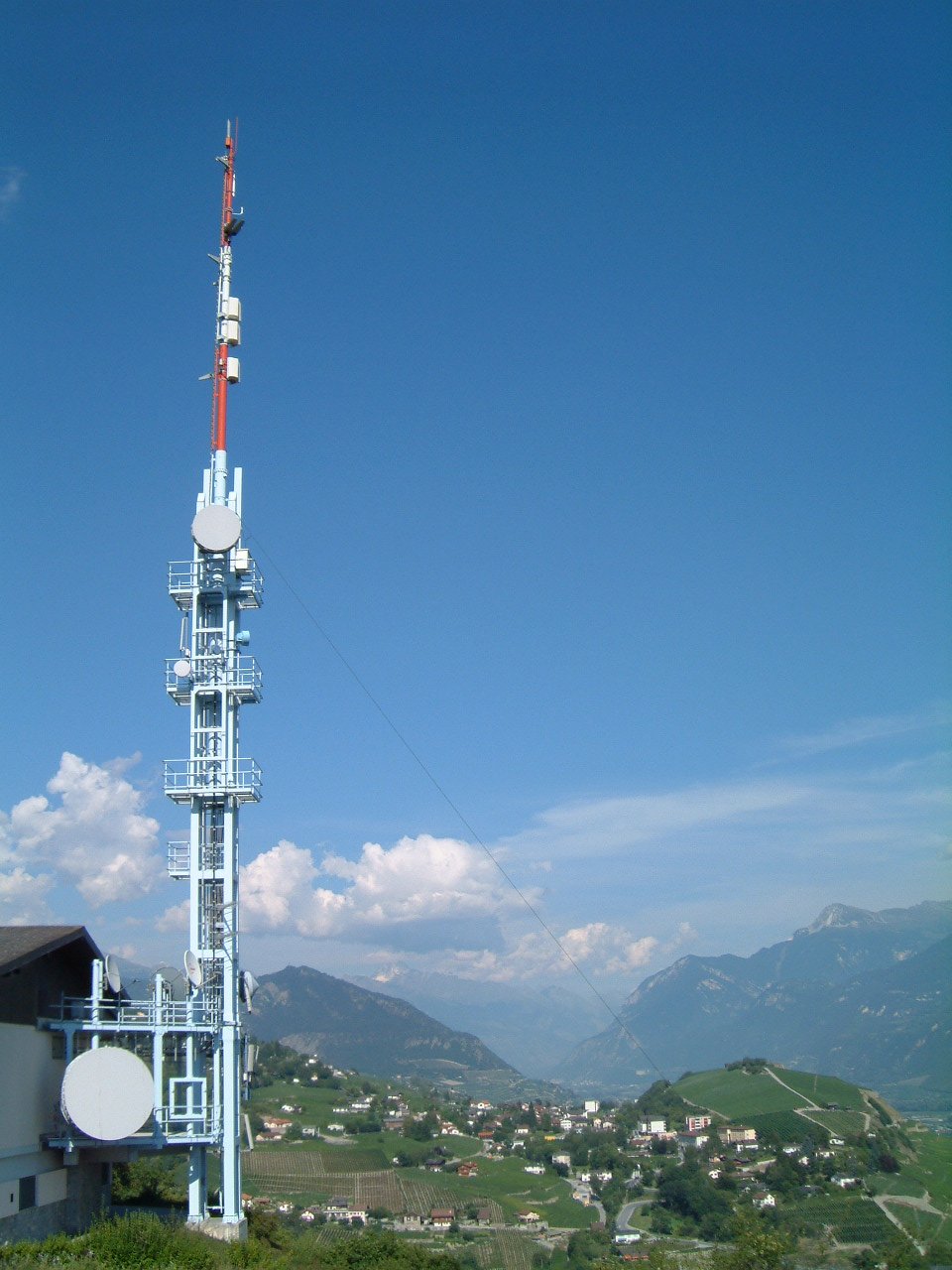

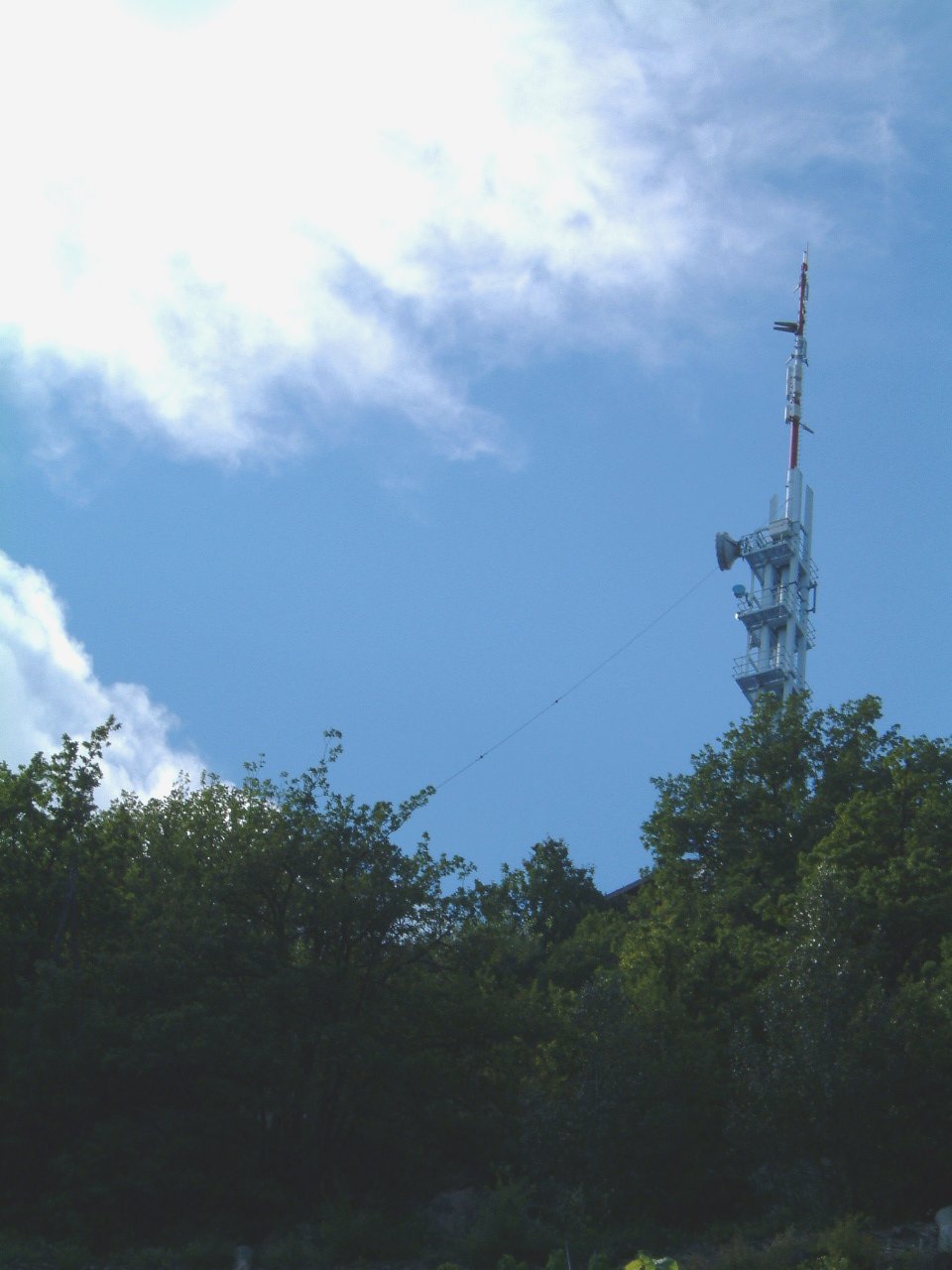

 West view of the main antenna (the wire diagonally descending on the right) |

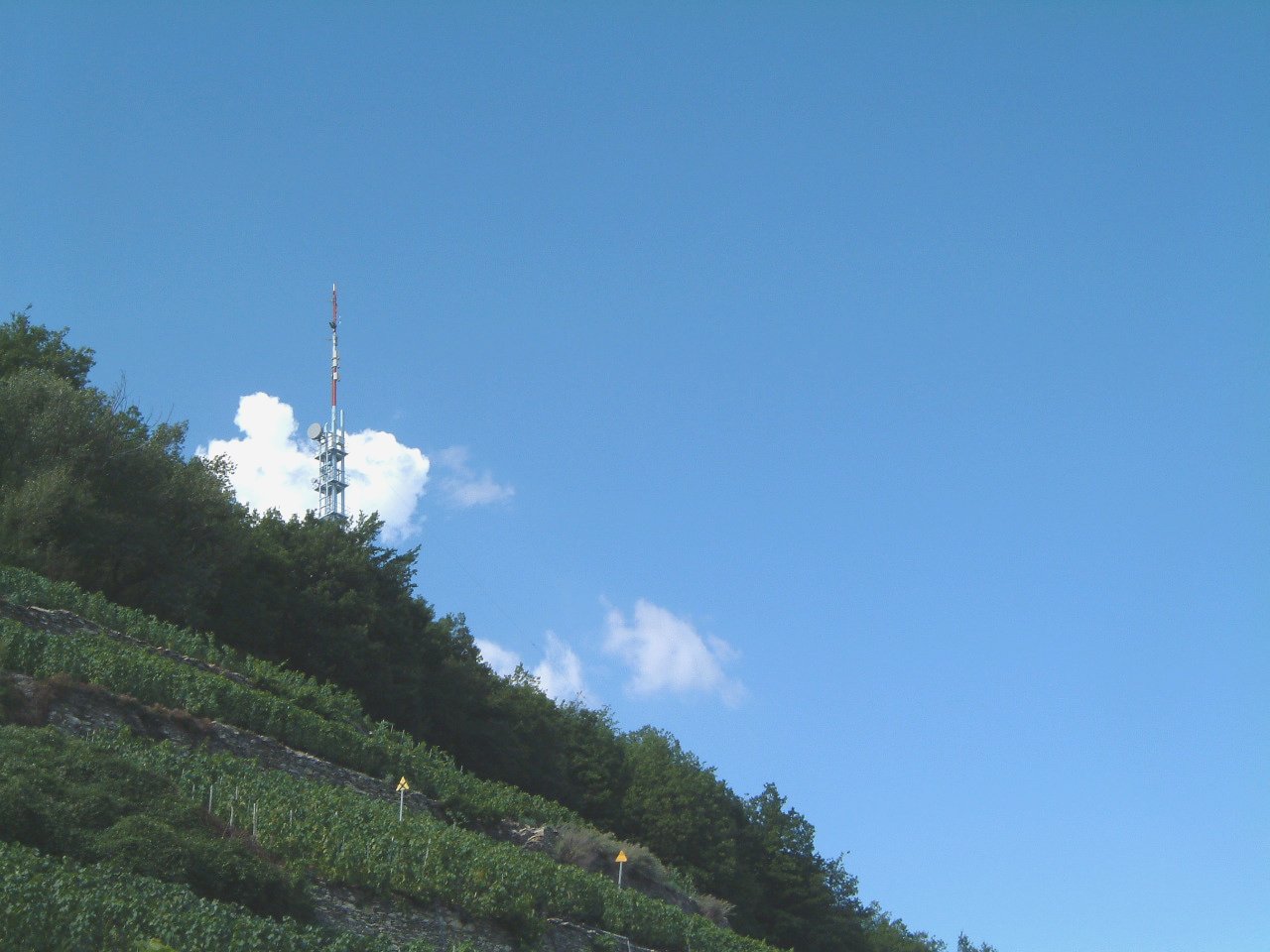

 South view of the main antenna |

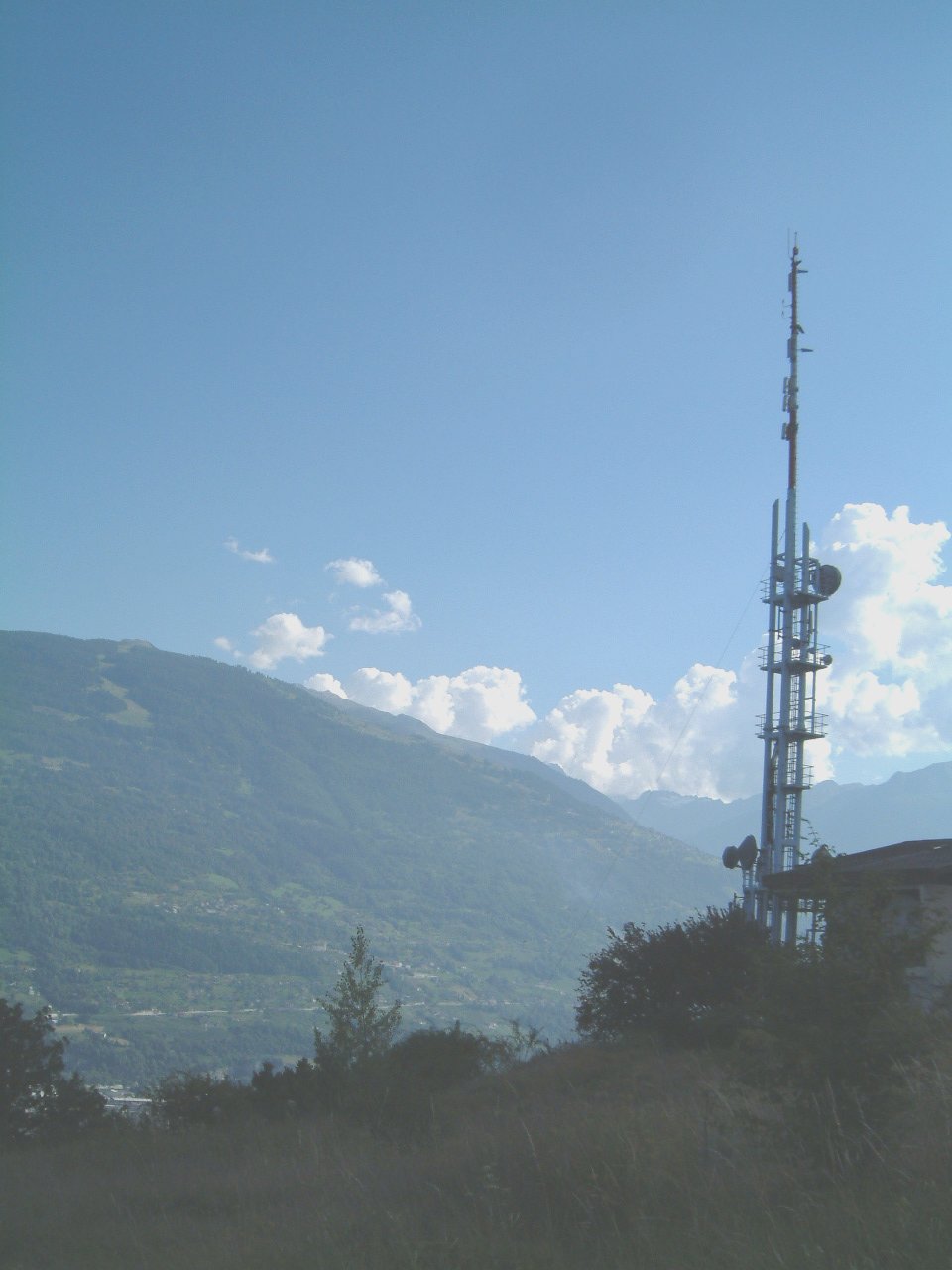

 East view of the main antenna |
 South-East view of the main antenna |

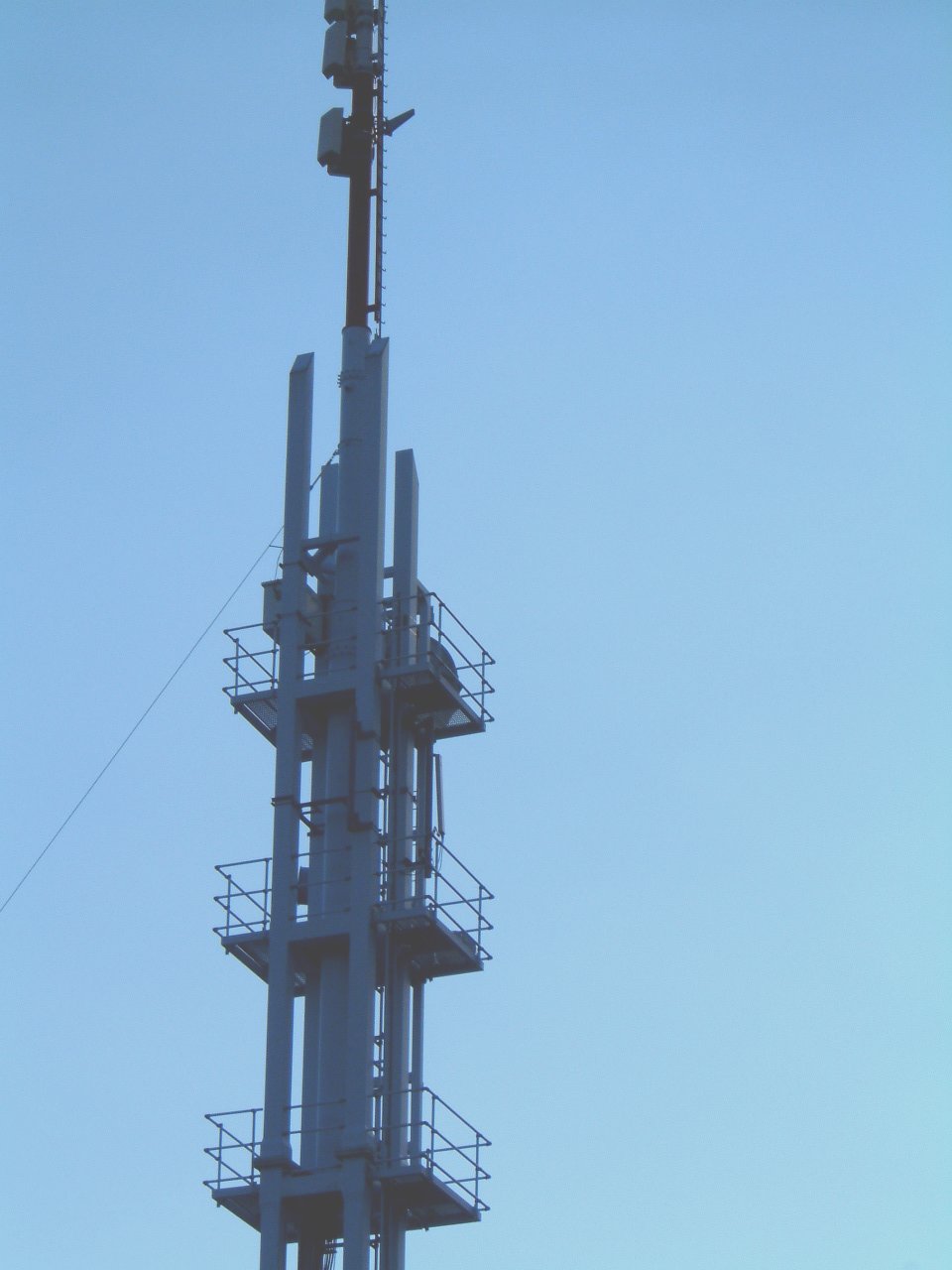

 Feed point and match box |
|
Spare antenna
| Tower type: | Guyed mast |
| Antenna type: | Short cage vertical, isolated from ground |
| Feed point: | Base of the vertical cage |

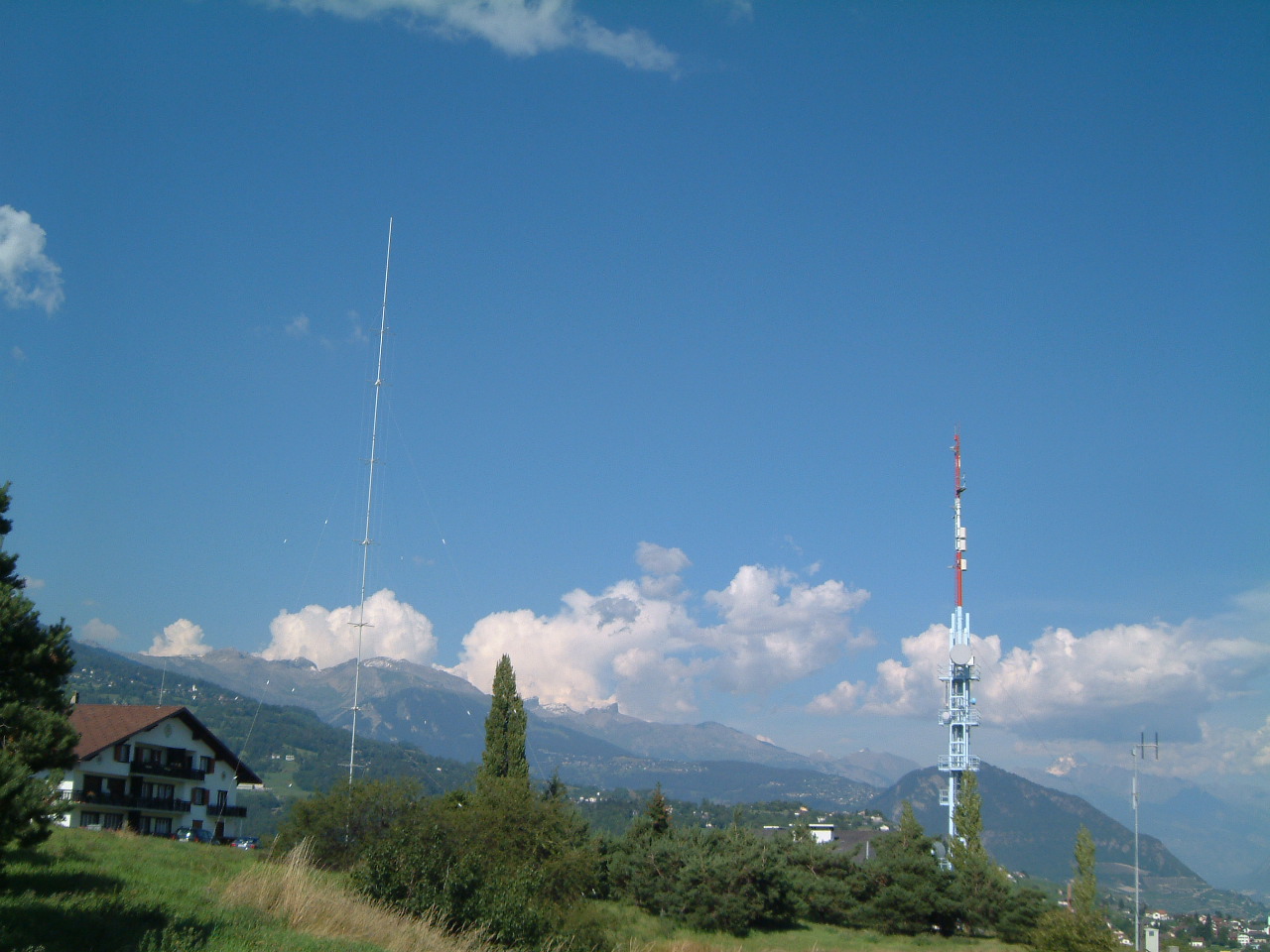

 View of both antennas (main and spare) |

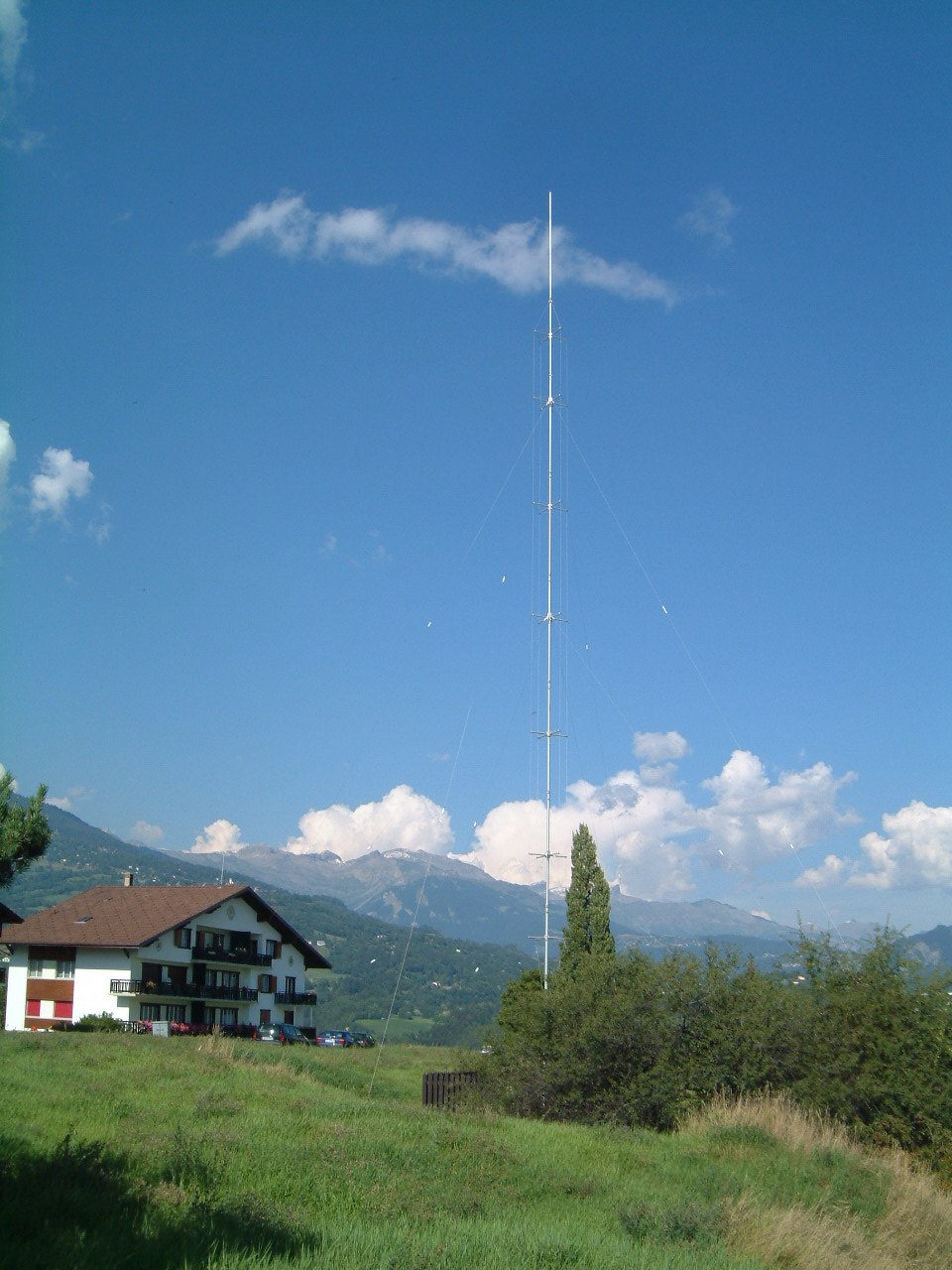

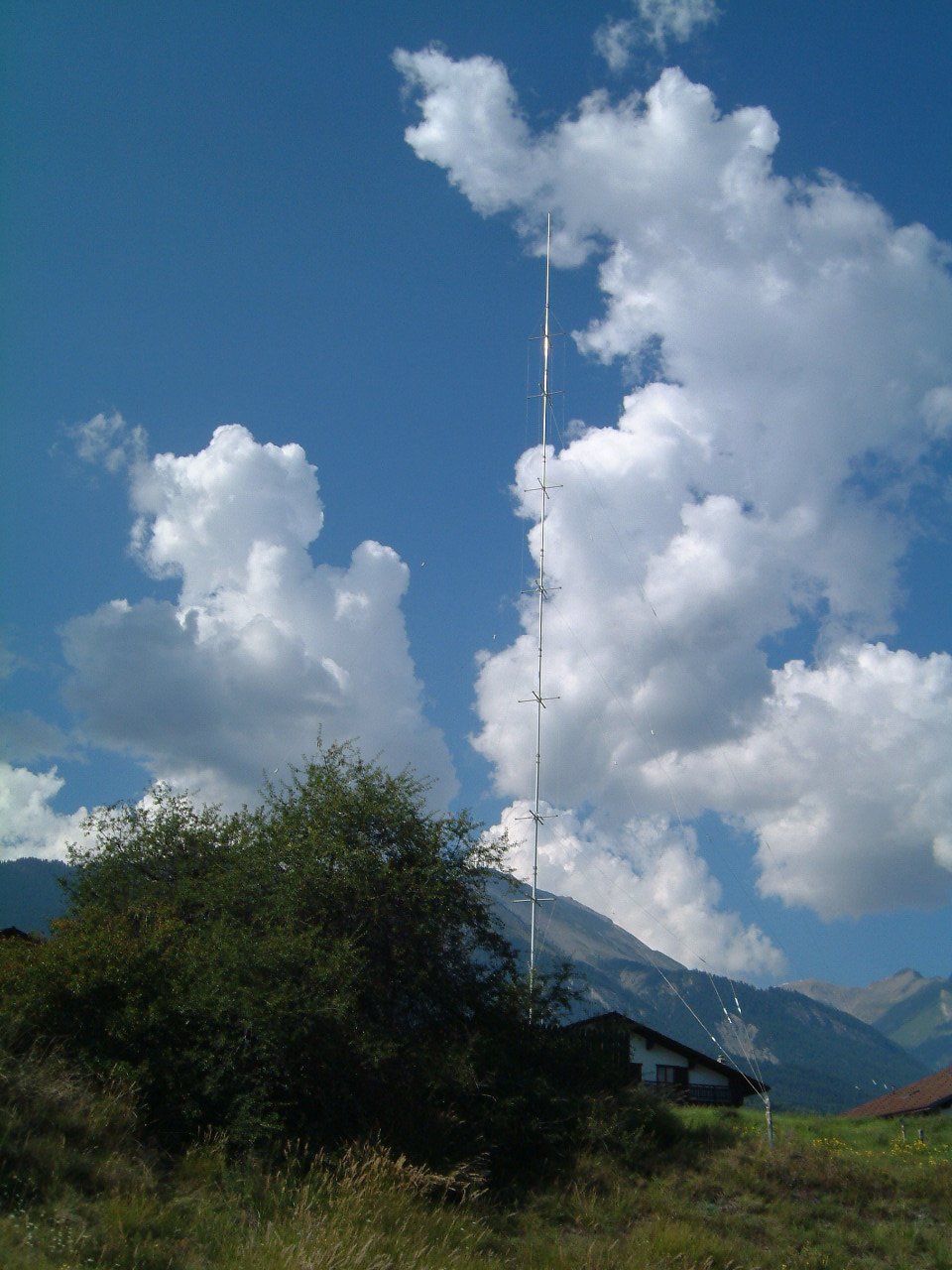

 South view of the spare antenna |
 West view of the spare antenna |
 Spare antenna viewed from it's base |

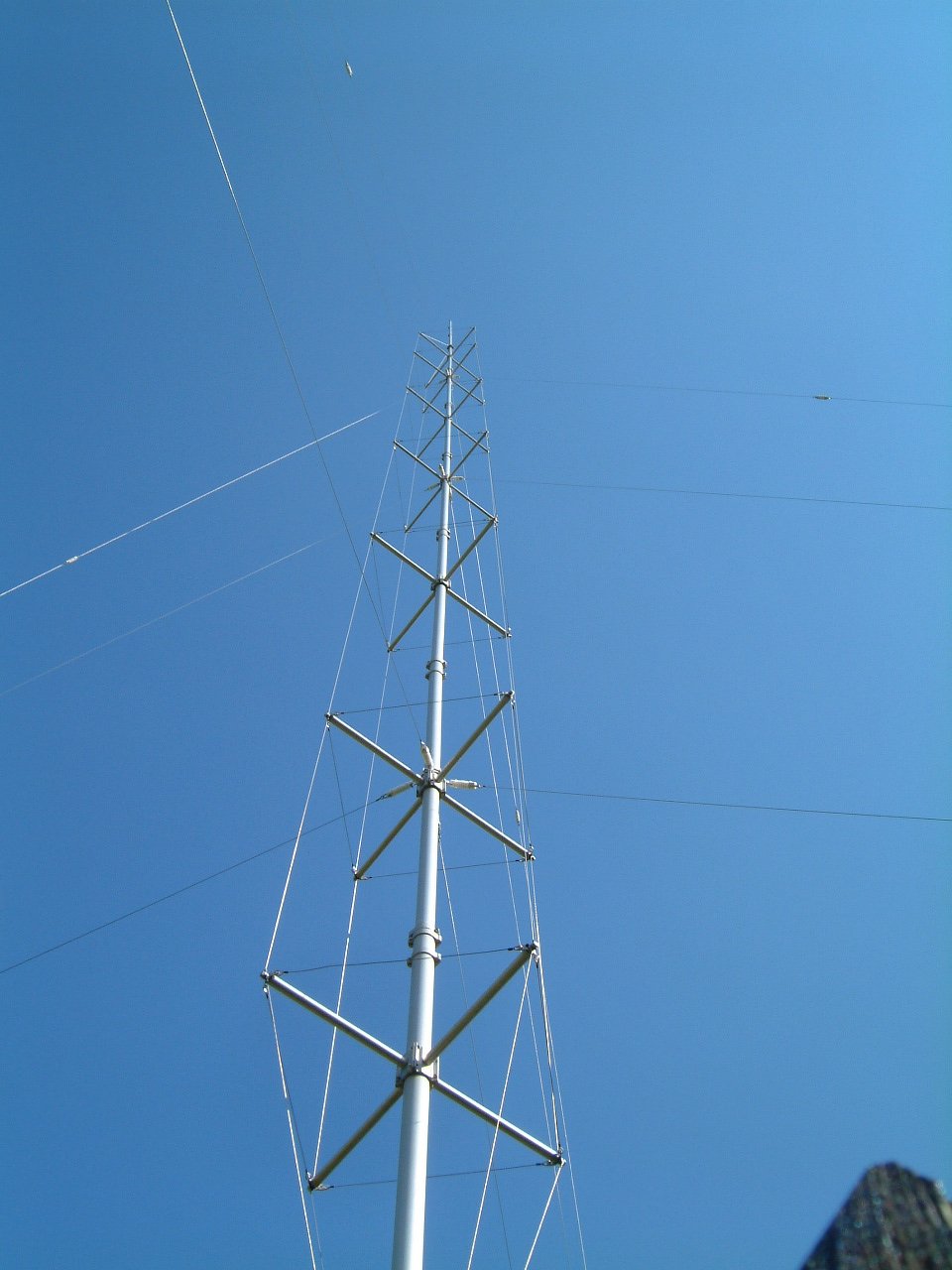

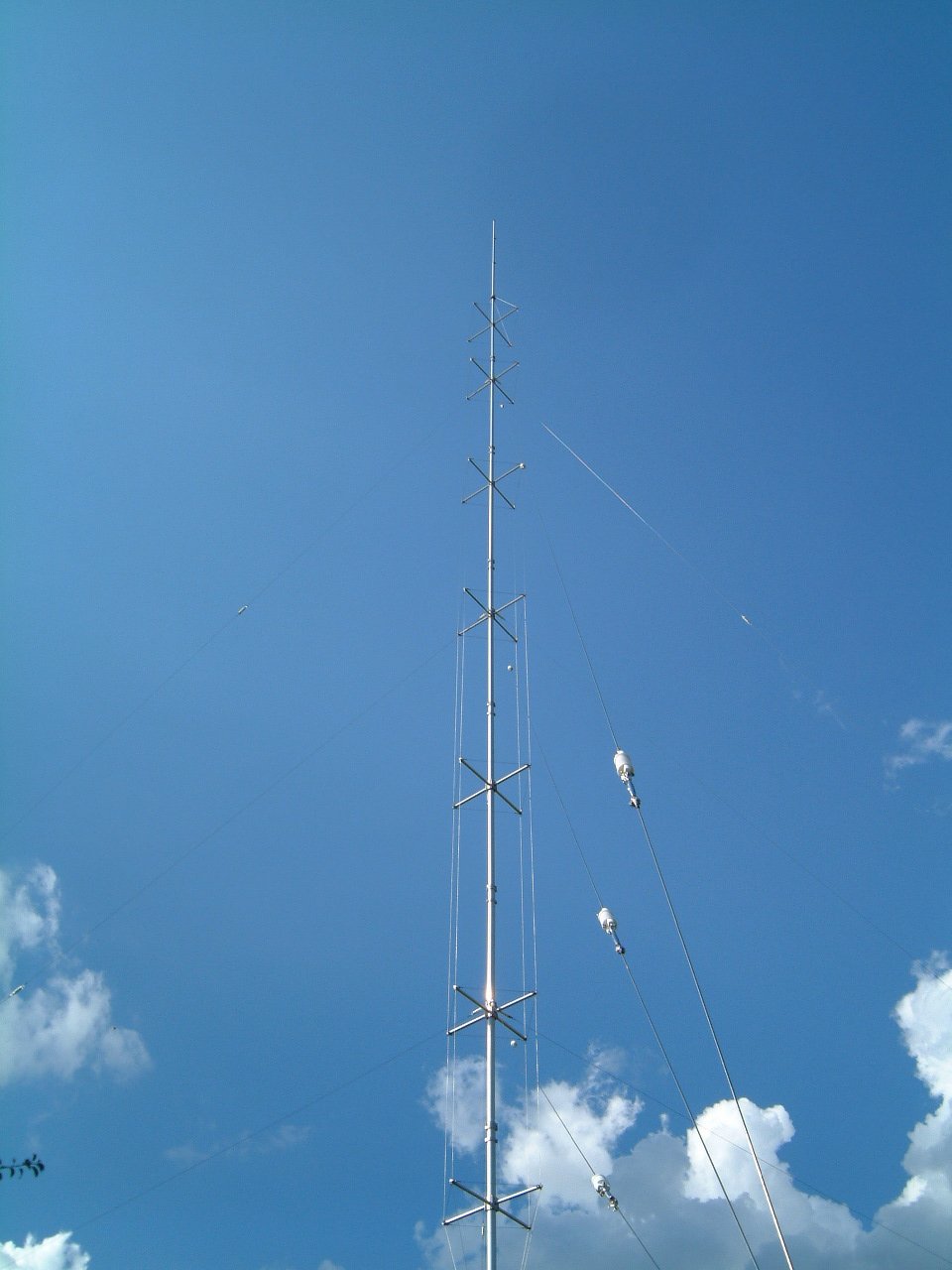

 Vertical cage and guy insulators |

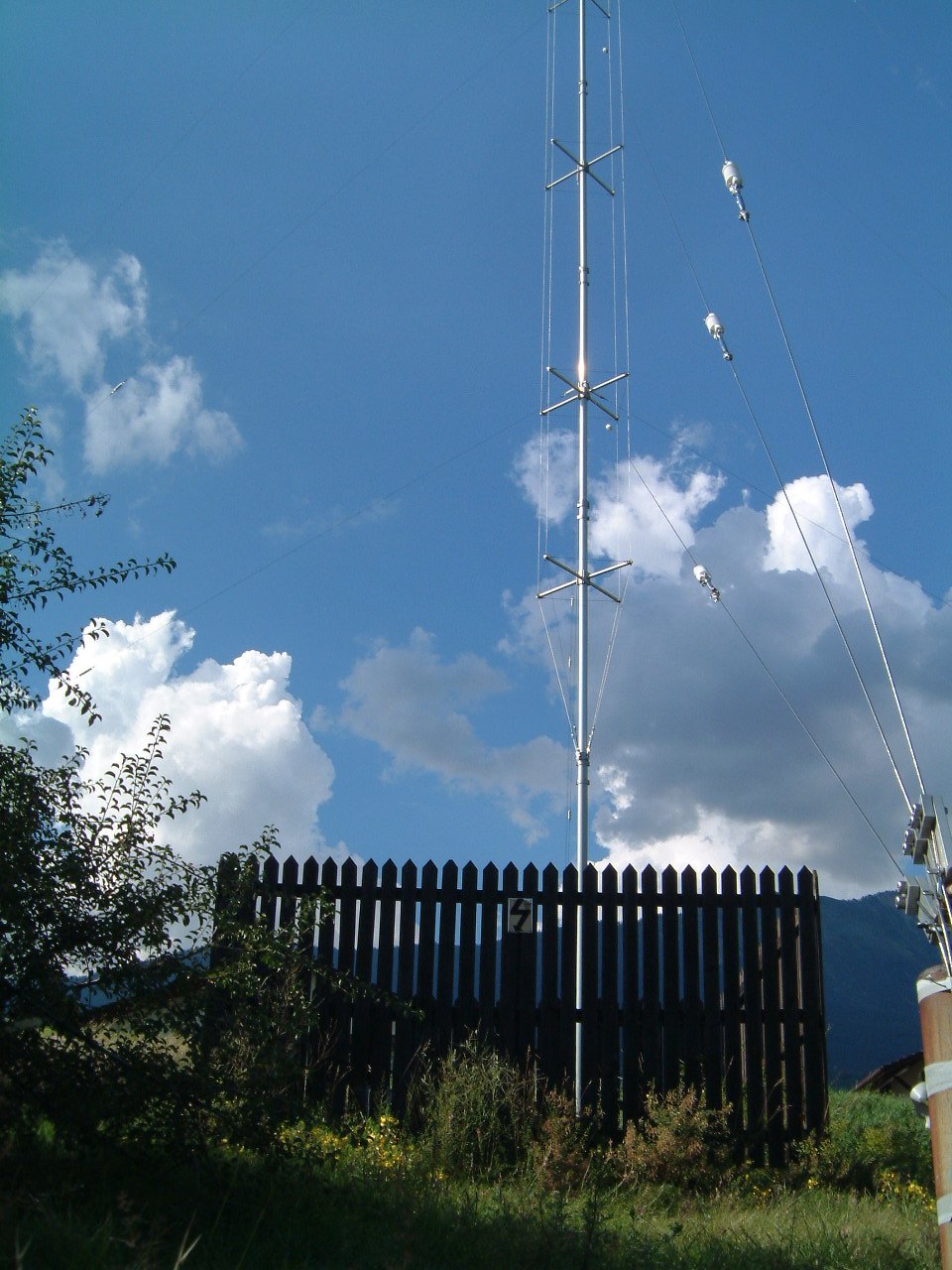

 Base of the antenna and guys |
 Match box, feed point and surge protection |

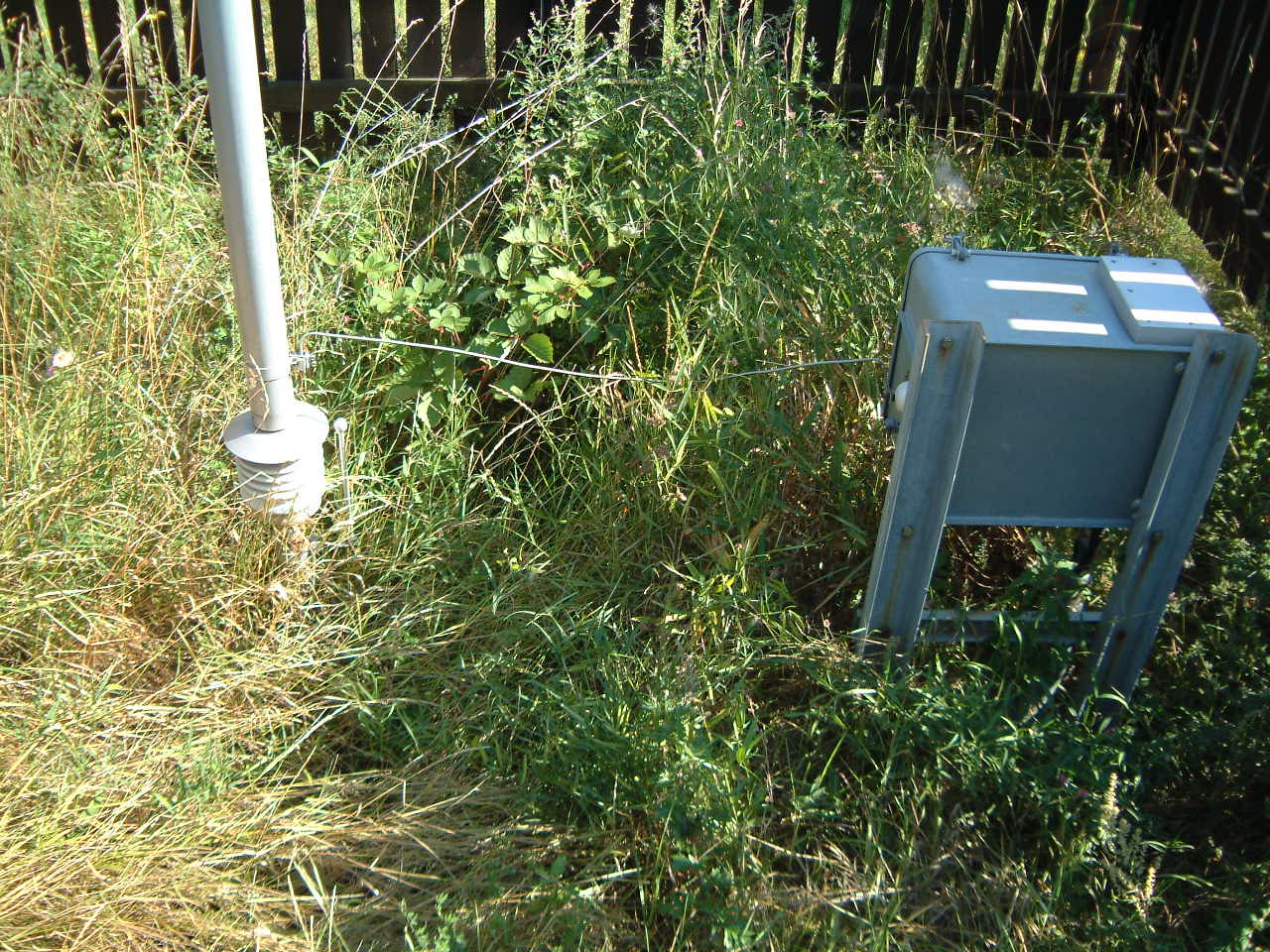

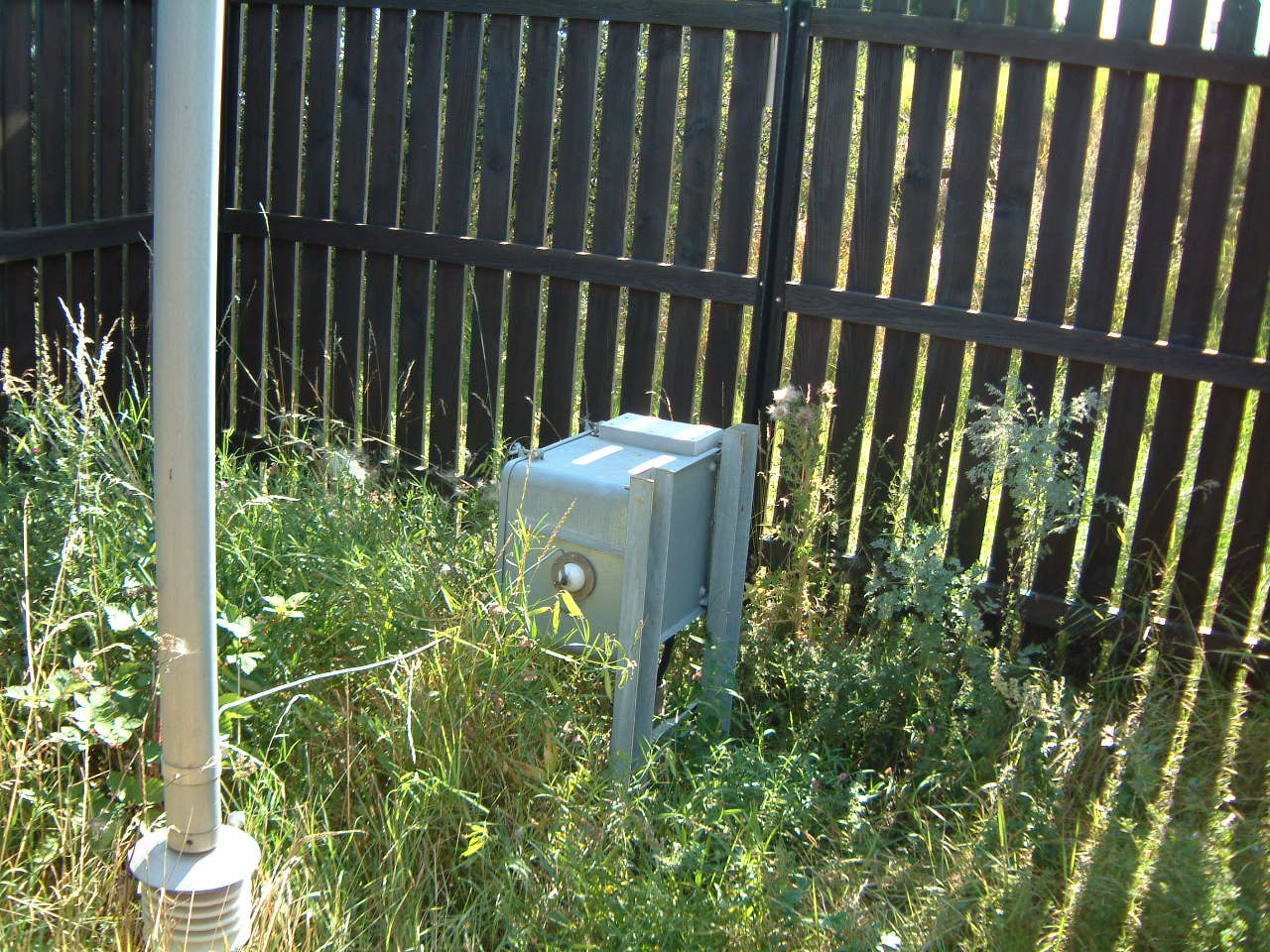

 Match box and feed point |
