The Monte Ceneri Pass antenna
Switched off in 1979 and replaced by the Monte Ceneri Cima di Dentro antenna
Antenna
| Location: | E 8° 54' 56.11" / N 46° 08' 26.50" |

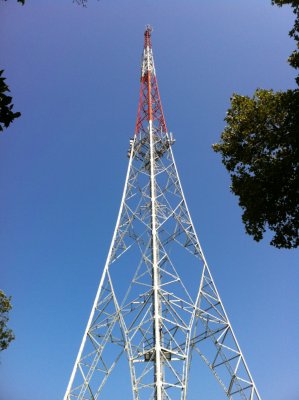

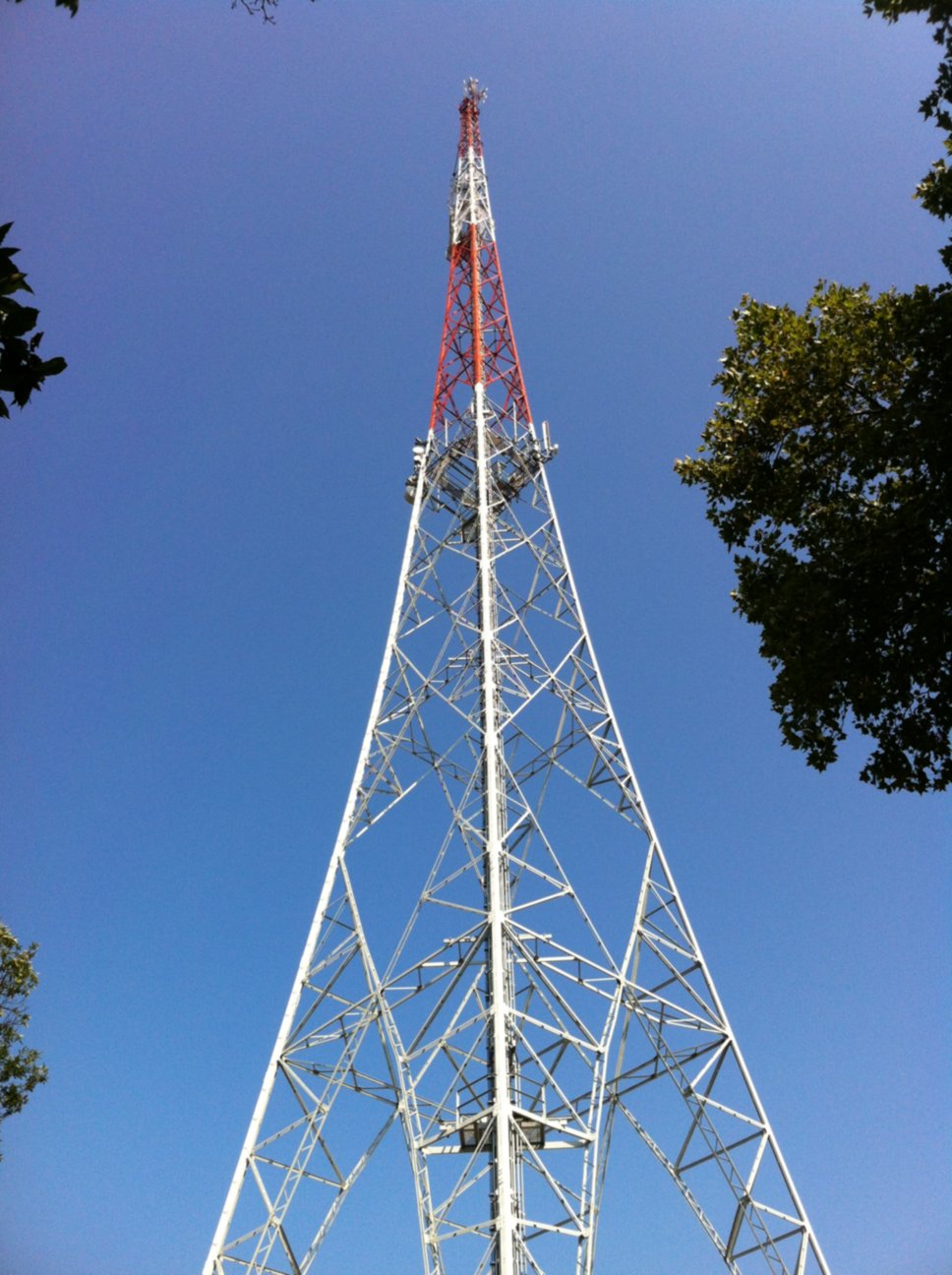

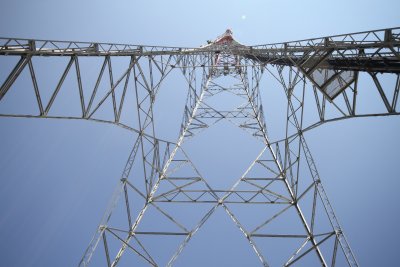

| Tower type: | 120 m self supporting tower. |
| Antenna type: | 0.22λ (80°) vertical tower, isolated from ground. |
| Feed point: | Unknown, probably base of the tower. |
| Ground plane: | Unknown. |

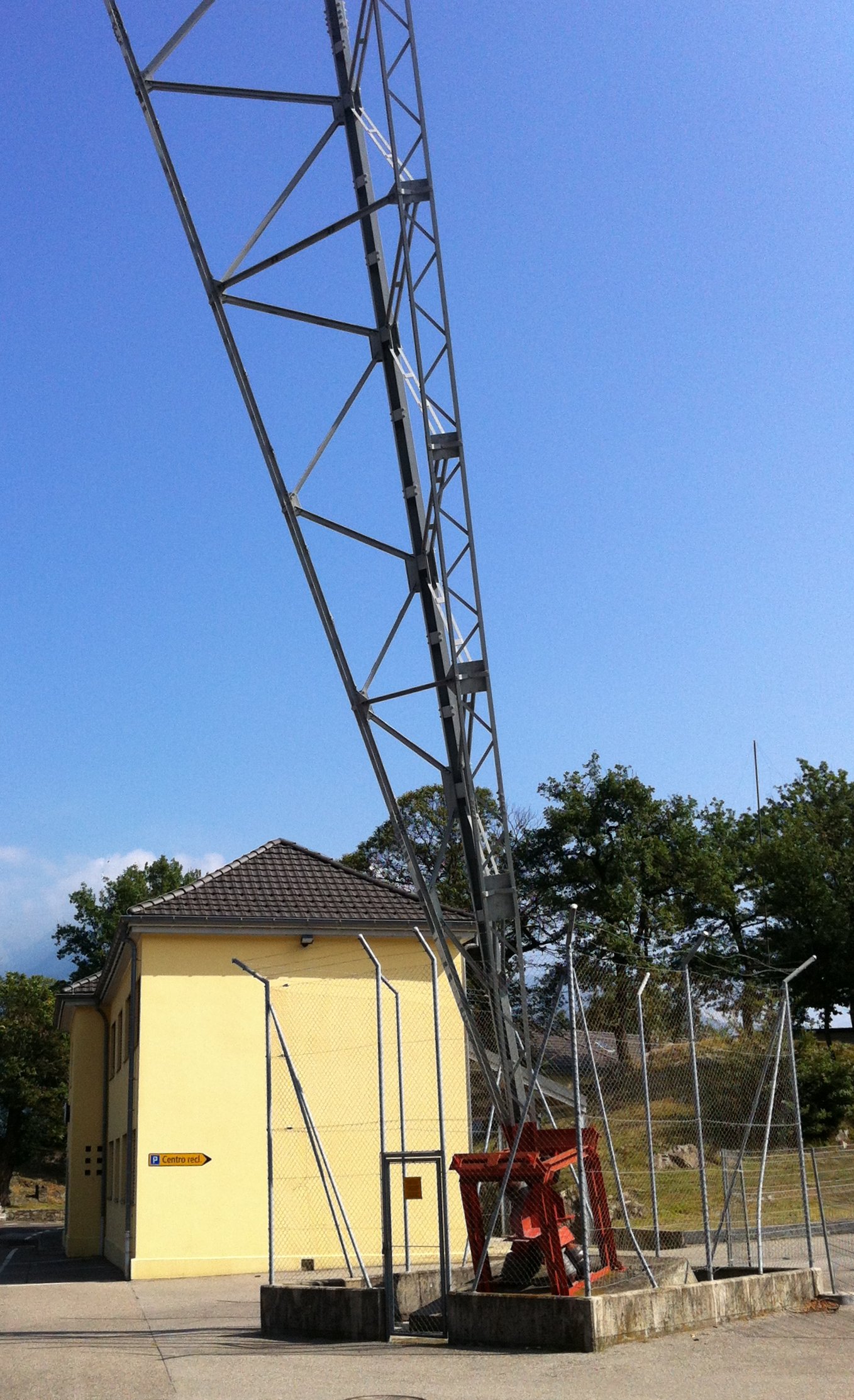

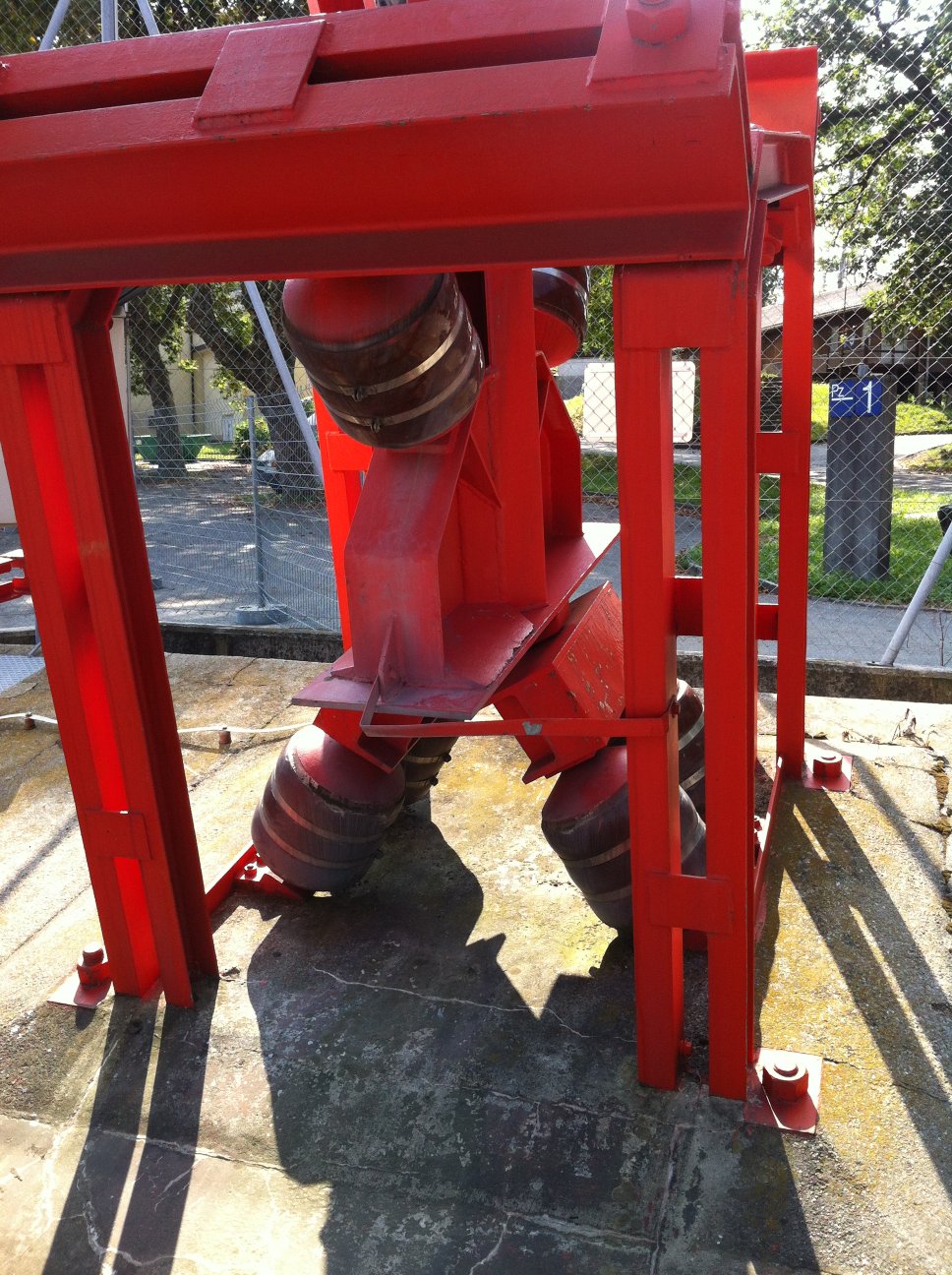

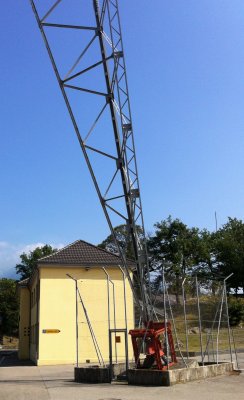

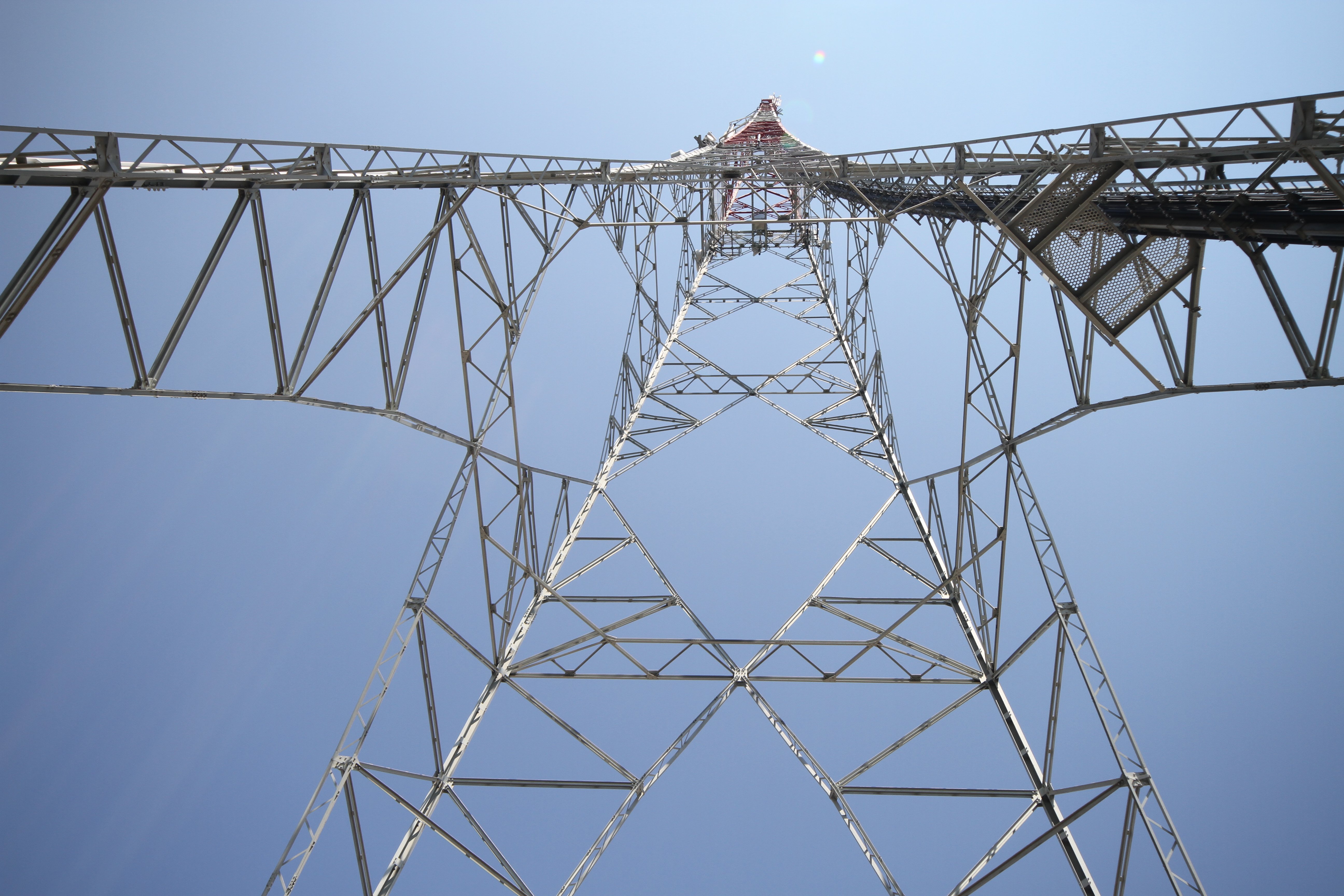

This antenna was built in 1933 and was used as a radiating transmitting tower until 1979 when it was replaced by the Monte Ceneri Cima di Dentro antenna, about 9 km to the east. The base insulators have been shorted (grounding the whole structure) and the tower is now used as stand for VHF/UHF broadcast antennas.
See Monte Ceneri Cima di Dentro for a short history of this transmitter.

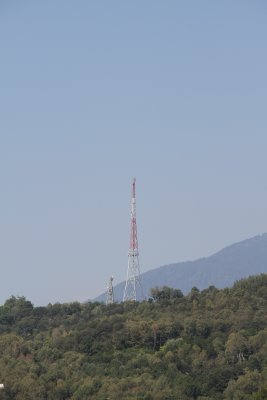

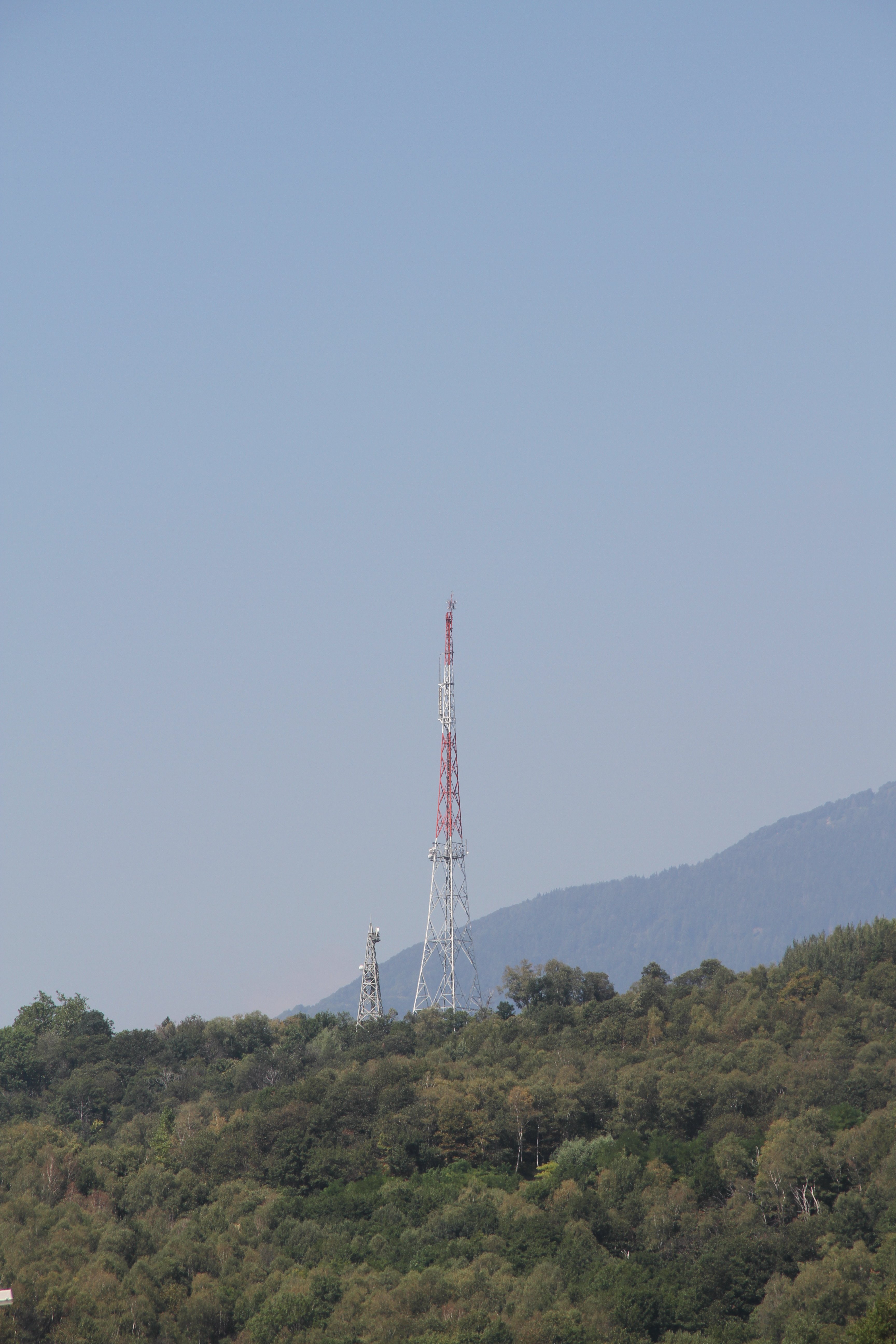

The Monte Ceneri Pass antenna, South wiev (Feb. 2011).
